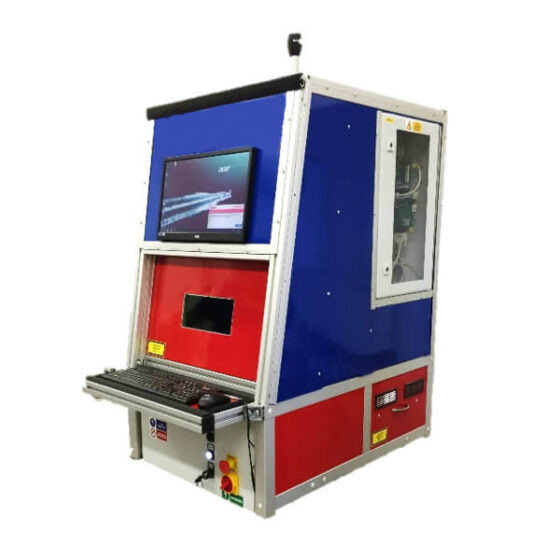

Veles CO2 workstation

The VELES CO2 multi-purpose work station is designed mainly for laser marking, engraving and cutting. The system is equipped with a modern CO2 laser with different outputs. The VELES CO2 station is designed both for smaller uses in small and medium-sized companies and for demanding industrial uses.

On request

Why choose a solution from NARRAN

Production takes place in the Czech Republic, which enables an above-standard individual approach to customers and their requirements

Option to purchase and install an extension of an existing station (eg extension by another axis)

Possibility of opening the side door for inserting large objects

SW and manuals in Czech

Description

The VELES CO2 multi-purpose work station is designed mainly for laser marking, engraving and cutting. The system is equipped with a modern CO2 laser with different outputs. The VELES CO2 station is designed both for smaller uses in small and medium-sized companies and for demanding industrial uses.

In the VELES CO2 station, a wide range of materials can be marked: wood, plastic, anodized aluminum, leather, paper.

Veles lasers are controlled by universal software, whose intuitive structure allows easy setting of all marking parameters. The choice between Czech, English and German allows comfortable operation for international service.

We are able to modify the product both in terms of hardware and software and adapt it to your needs.

Parameters

Laser fiber source power: 10 – 400 W
Description speed: up to 15 m / s
Field size: 69×69 mm up to 400×400 mm
Possibility of communication with superior control system
Loading data from various sources: eg from a network database, barcodes or QR codes
Possibility of camera detection location of the marking object
Optional axes: X, Y, Z, axis of rotation, carousel
Recognizes: main vector and bitmap graphic formats
(* .plt, * .dxf, * .dwg, * .cmx, * .tif, * .pcx, * .bmp, svg, emf, mcl, twain, ai etc.)
Editing: texts, resizing, rotation, skew, perspective, hatching, etc.
Automatic generation: datamatrix, barcodes or 2D codes based on database or input data
Automatic insertion: current date and time, product counters
Laser source service life up to 20,000 hours
Low operating costs low power consumption, approx. 180 W
Internal diagnostics automatic laser shutdown for protection
