Customized Dust Covers / Bellows
We now offer custom-made dust covers / bellows manufactured according to customer requirements. This newly introduced capability allows us to design and produce bellows fully customized to the customer’s machine, application, and spatial constraints.
Send us your drawing or key dimensions, and we will prepare a solution and a price quote for you

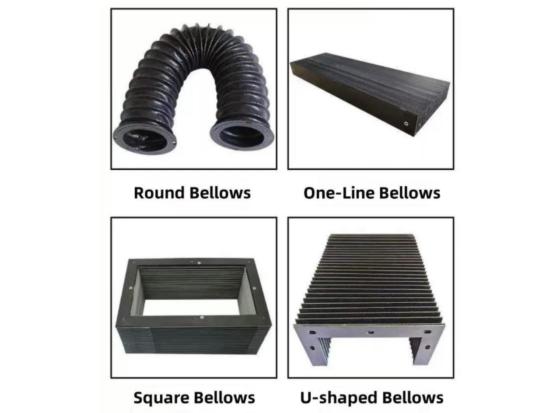

Available Types
- Straight-line Dust Cover
Suitable for linear guideways, lead screws or ball screws, and applications with straight-line motion and simple geometry. - U-shaped Bellows
Suitable for linear guide rails, moving machine tables, and CNC machines. - Square Bellows
Suitable for ball screws, piston rods, telescopic components, and drive mechanisms. - Rail Dust Cover
Suitable for precision linear guides, automation systems, and robotic applications.
Custom Manufacturing Options
All bellows can be produced on a made-to-order basis, depending on the selected type, with adjustable parameters including:
Key Benefits of Custom Production
- Exact fit to customer machinery
- Designed according to precise machine dimensions and stroke length
- Eliminates gaps that could allow contaminants to enter
- Ensures smooth movement without interfering with machine operation
- Enhanced protection against dust, sparks, and debris
- Shields critical components from abrasive dust and fine particles
- Reduces risk of mechanical damage and premature wear
- Maintains clean operation in harsh industrial environments
- Long service life in industrial environments
- Manufactured from durable, wear-resistant materials
- Designed for high cycle counts and continuous operation
- Reduces maintenance frequency and downtime
- Compatibility with linear axes and moving parts
- Designed for smooth operation at various travel speeds
- Maintains flexibility without compromising structural strength
- Minimizes friction and resistance during movement
- Suitable for CNC machines, laser cutting and welding systems, and automation equipment
- Withstands exposure to hot chips and welding sparks
- Protects precision components in high-accuracy CNC systems
- Improves overall machine reliability and operational safety
Suitable Applications
- CNC machining centers
- Laser cutting and laser welding machines
- Linear guides and rails
- Industrial automation systems
Customized dust covers / bellows are made for demanding industrial environments where precision and reliability are critical.
All customized dust covers / bellows are manufactured based on customer drawings or dimensional specifications.

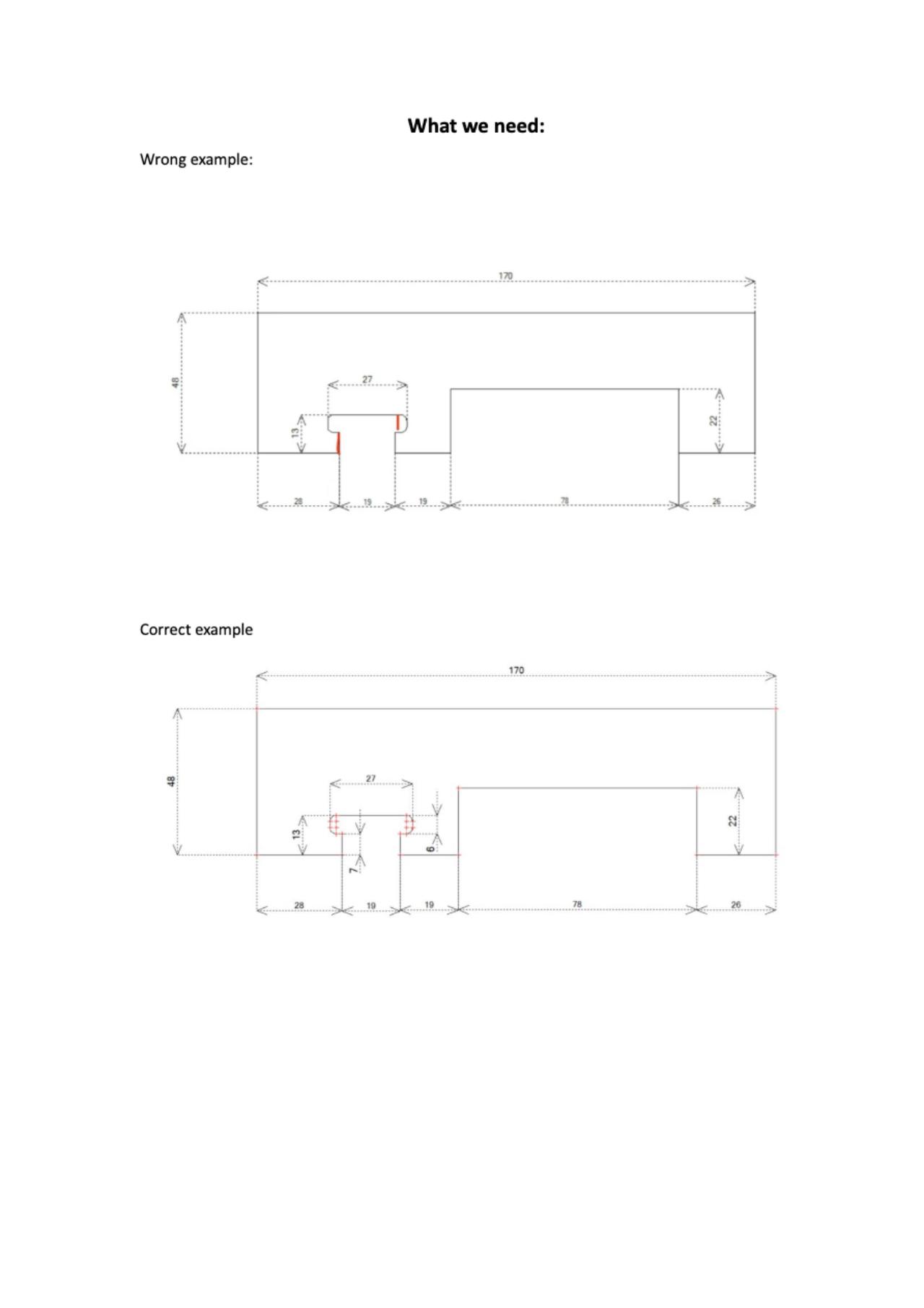

Customer drawings
We manufacture covers and bellows precisely to your machine’s dimensions.

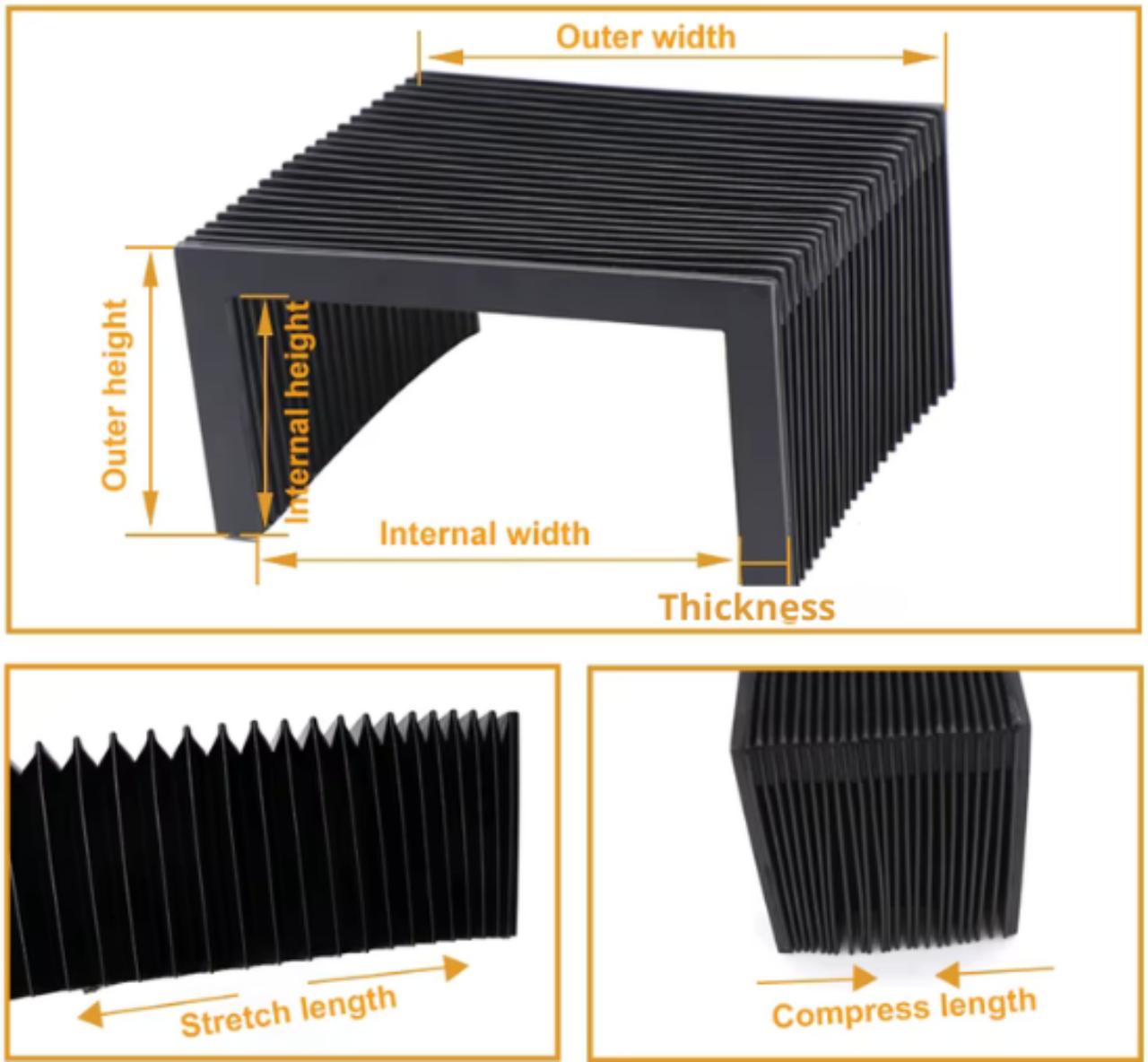

Dimensional specifications we need
One-line bellow:
– Width
– Max stretch length
– Min compressed length
– Height
Square bellow:
– Width
– Max stretch length
– Thickness
– Height
U-shaped bellow:
– Outer height / Inner height
– Max stretch length / Min compressed length
– Outer Width / Inner width
– Outer height / Inner height
It is really helpful to have a photo of the actual bellow.
