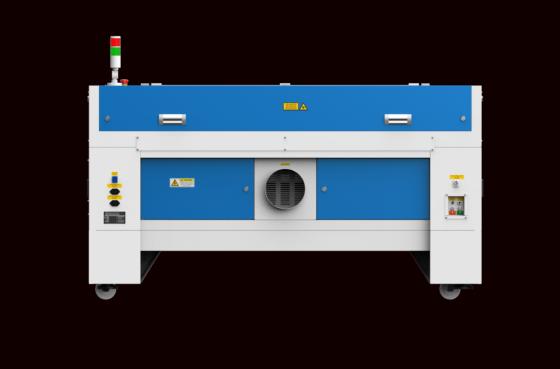

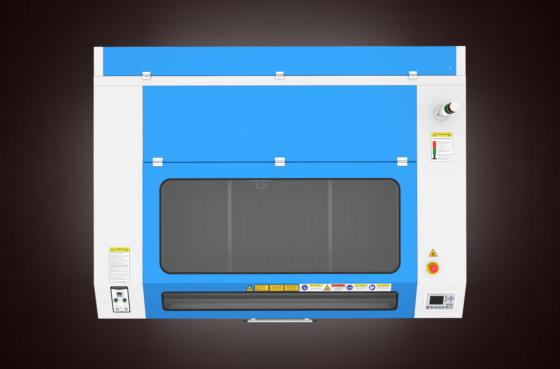

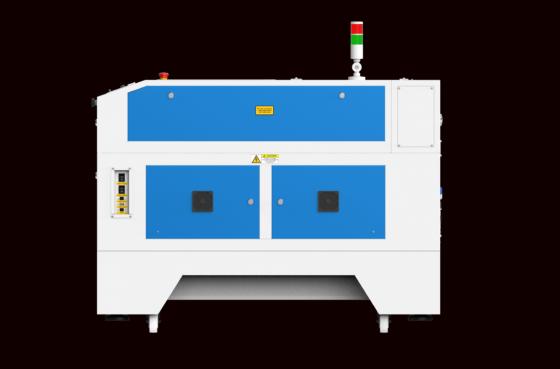

Nova 51

Nova 51 is a universal cutting and marking laser of larger dimensions and with a larger working area, which is due to its flexibility and favorable price suitable even for less demanding operations, for which it would be unnecessary to purchase a laser machine of industrial parameters.

Suitable applications

application-6
Laser cutting
application-9
Marking and engraving

Suitable materials

Wood
Plastic (PMMA)
Glass
Textiles
Paper

Why choose a solution from NARRAN

We can individualize our machines according to your needs

We will arrange the turnkey contract, including installation and training

We offer the possibility of testing samples at your place of operation

We will quickly supply spare parts and provide a complete service

Description

The Nova 51 laser plotter is equipped with a CO2 tube with a power of 100-130 W. It is possible to cut and mark a wide range of materials, such as paper, wood, plywood, textiles, leather, plexiglass and other plastics, cork. The laser can mark (engrave) even more demanding materials, such as some metals, glass, ceramics and marble, with the help of special chemicals and stainless steel, brass or titanium.

The work surface has dimensions of 1300 × 900 mm, the height of the Z axis is up to 230 mm. The laser can work in raster, vector or combined mode. Control is facilitated by both the intuitive display panel and RDWorksV8 software, which can be run on a standard Windows PC. The machine can be connected via USB or Ethernet.

  • high speed servomotors
  • 100-500 DPI resolution, expandable up to 1000 DPI
  • aiming red dot
  • automatic focus
  • protective cover safety, emergency stop button

Parameters

Power 100-130 W
Resolution 100-500 DPI, expandaple up to 1000 DPI
Work area 1300×900 mm
Z axis height up to 230 mm
