Laser welding requires strict adherence to safety standards, which is why LightWELD 2000 is designed with operator protection in mind. It includes features such as emergency stop functionality, interlock systems, and laser activation only upon contact with the material.

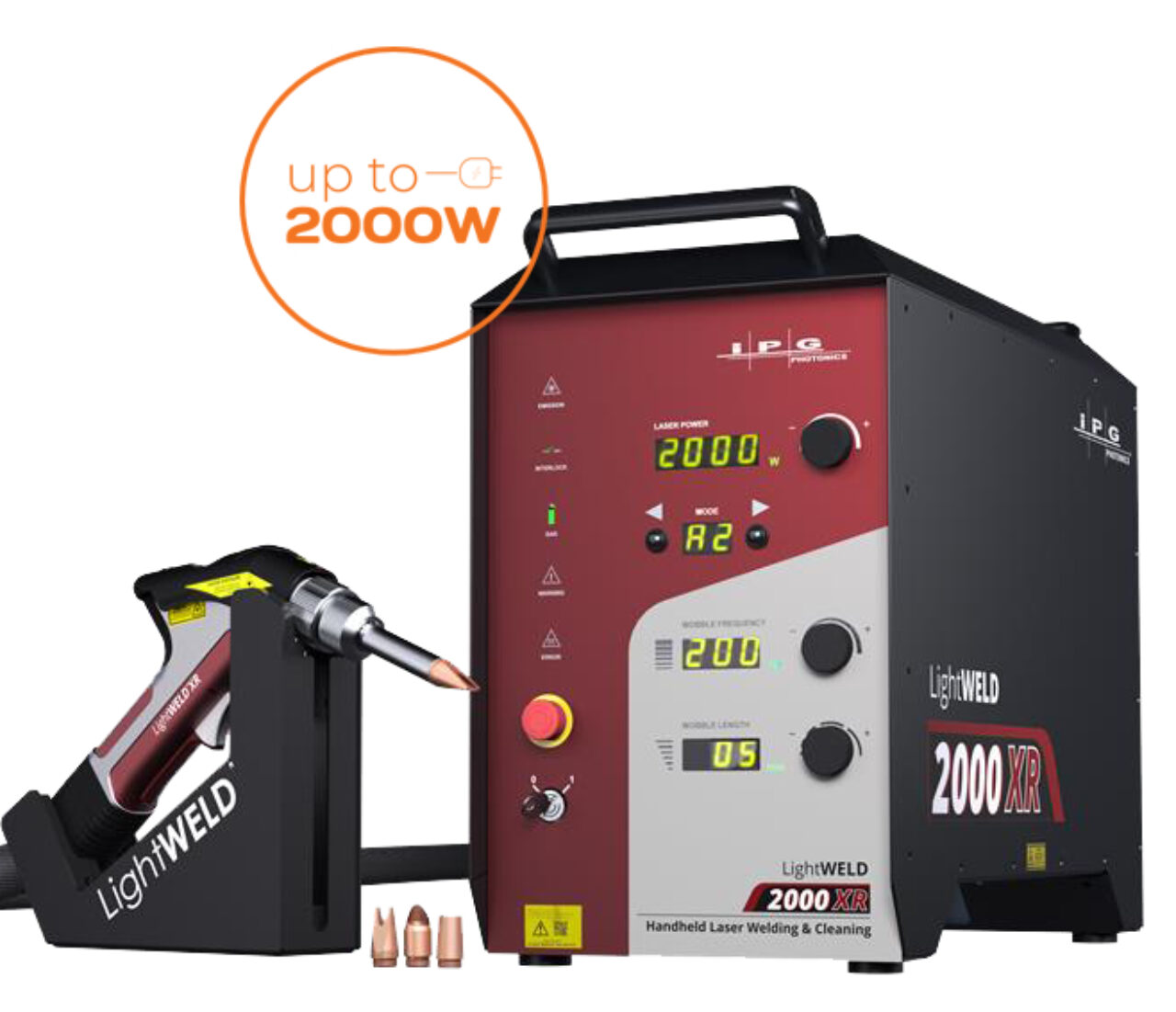

LightWELD 2000
LightWELD 2000 is a cutting-edge handheld laser welder designed for welding steel, aluminum, titanium, copper and nickel alloy. Thanks to advanced fiber laser technology, it achieves up to four times the speed of traditional TIG welding while maintaining minimal heat input to the material. LightWELD 2000 is ideal for delicate decorative work as well as heavy-duty welding in professional industrial environments.
Suitable applications
Suitable materials
Why choose a solution from NARRAN
We can individualize our machines according to your needs
We will arrange the turnkey contract, including installation and training
We offer the possibility of testing samples at your place of operation
We will quickly supply spare parts and provide a complete service
Premium Precision
Compared to traditional welding methods, laser technology delivers far more precise and cleaner welds. Thanks to the high power density of the light beam, LightWELD 2000 achieves deep penetration while keeping heat input to the surrounding material to a minimum. This significantly reduces distortion and minimizes the need for post-weld grinding.
Up to 4x Faster Than TIG
Time and energy savings in laser welding aren’t just about weld quality and cleanliness — speed is a major advantage as well. Compared to conventional TIG welding, LightWELD delivers a process that is up to four times faster. As a result, the higher initial investment in laser technology clearly pays off over the long term.
Efficient Presets
LightWELD 2000 features 100 customizable welding parameter sets, including 75 built-in presets. These presets are optimized for common materials and thicknesses, significantly saving time and reducing the risk of errors. This allows even less experienced welders to achieve professional results without lengthy setup and adjustments.
Focus on Safety
LightWELD 2000 Parameters
| Machine model | IPG LightWELD 2000 |
| Steel welding capacity (stainless and carbon) | up to 8 mm thick |
| Aluminum 3 & 5 welding capacity | up to 8,2 mm thick |
| Aluminum 6 welding capacity | up to 5,8 mm thick |
| Titanium welding capacity | up to 6 mm thick |
| Copper welding capacity | up to 3,3 mm thick |
| Nickel alloy welding capacity | up to 7 mm thick |
| Output power | 2000 W |
| Laser type | fiber |
| Cooling | air |
| Wobble welding | yes |
| Svařování s rozkmitem svazku (wobbler) | up to 5 mm wide |
| Emission mode | pulsed and continuous |
| Cleaning | up to 15 mm wide |
What can LightWELD 2000 be used for?
Precision welding of thin and sensitive components
Structural welding for high-strength applications
Metal art and decorative projects with high aesthetic demands
Welding in vertical and difficult positions
Field repairs, workshop welding, and operations on production and assembly lines
Multi-process welding before or after arc welding steps
LightWELD 2000 Handles Cleaning Too
LightWELD 2000 offers a laser cleaning function both before and after welding.
-

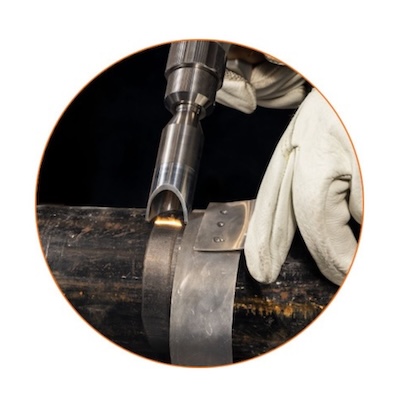

Pre-weld Cleaning
Pre-weld cleaning effectively removes contaminants such as rust, oil, grease, paint, and dirt from the surface. This eliminates the need for wire brushing or the use of solvents.
-

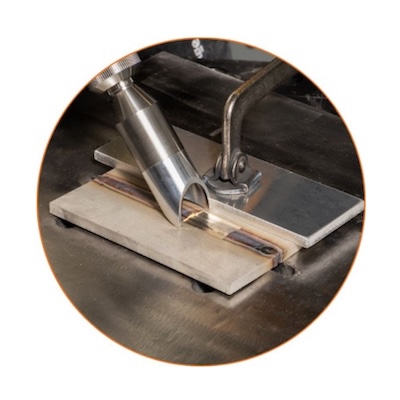

Post-weld Cleaning
Post-weld cleaning quickly removes soot, material residue, and weld discoloration, further enhancing the appearance of the joint and significantly increasing overall productivity.
