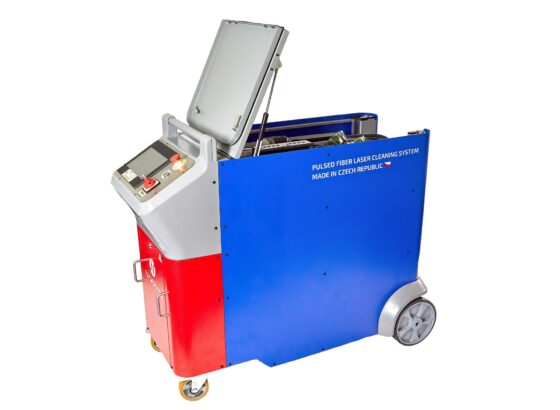

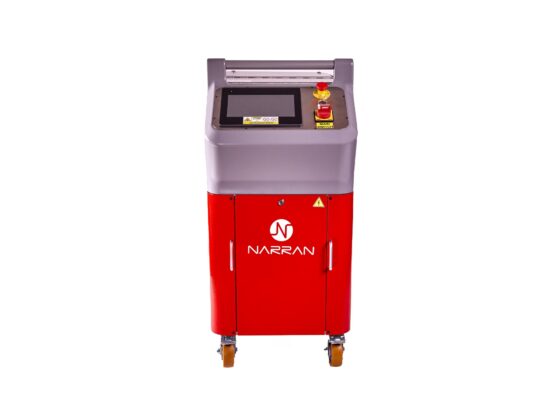

Mobile cleaning laser ROD 500W
ROD Laser is a new generation mobile industrial cleaning machine, developed and built by Narran in the Czech Republic. It is equipped with a special fiber resonator, which allows cleaning without damaging the surface. ROD Laser is suitable for cleaning a wide range of materials, typically metals (cleaning rust, grease, paint, etc.), but also masonry.
Suitable applications
Suitable materials
Why choose a solution from NARRAN
We can individualize our machines according to your needs
We will arrange the turnkey contract, including installation and training
We offer the possibility of testing samples at your place of operation
We will quickly supply spare parts and provide a complete service
Description
ROD Laser is a new industrial mobile cleaning machine of a new generation, manufactured and built by Narran in the Czech Republic. It is equipped with a special fiber resonator, which allows cleaning without damaging the surface. ROD Laser is suitable for cleaning a wide range of materials, typical metals (cleaning rust, grease, paint, etc.), but also masonry.
Technical Specifications:
The scanning head of the machine is suitable for manual and robotic applications, it can be mounted in industrial lines. The flexible optical fiber for guiding the laser beam enables truly mobile work and cleaning even in less accessible places. The laser requires a standard 230 V, 50/60 Hz power supply, so it can be used practically anywhere in the field. The machine is basically just a trolley with storage space for the laser head, so you can easily transport it where you need it.
The power, shape and width of the beam can be changed, even while the laser is running.
The laser has integrated cooling, no additional cooling equipment is required.
Parameters
| Power supply | 110/230V, 50/60Hz |
| Performances | 500 W |
| Diode life | more than 100,000 hours |
| Optical fiber length | 10 m (up to 100 m for special applications) |
| Dimensions | 1.1 x 1.26 x 0.6 m |
| Weight | 195 kg |
| Process head weight | 2,5 kg |
| Peak power | 2500kW (?) |
Summary of key advantages of ROD laser machines
-
Advanced Technology & Industry 4.0
- Full readiness for Industry 4.0 – Support for Profinet and OPC UA for integration into industrial systems.
- WiFi diagnostics available for all models.
- Automatic filtration activation synchronized with laser emission.
- Industrial PLC for stable and reliable operation.
- 2D scanning – the fastest in the world.
-
Robust Construction & Cooling
- Air-cooled models: ROD 50, 100, 200, 300.
- Water-cooled models: ROD 500, 1000, 2000, 3000 (including actively cooled head).
- Welded construction certified for crane suspension (models ROD 500, 1000, 2000, and 3000).
- Low power consumption – from 500W.
-
Safety & Certification
- Made in the Czech Republic.
- ISO, CE certification, and FDA approval for the U.S. market.
- Interlock connection to all machines.
- Connection to a light alarm & external triggering for automation.
- Safety button for head shutdown according to the latest standards.
- Option to connect an optimized fume extraction system.
-
Automatic Optics & Advanced Control
- Automatic focus adjustment for all heads – no manual adjustments, contamination elimination, long lifespan, very easy – just a few clicks (conduct a study on why this is needed).
- Automatic setting of focusing parameters (energy density, laser beam diameter).
- 2D scan for ROD 50, 100, 200, 300 – others available upon request.
- Color touchscreen for easy control (models ROD 500, 1000, 2000, and 3000 have a display directly on the head).
- Light signaling of machine status for instant visual inspection.
- Airflow regulators for models ROD 200, 300, 500, 2000, and 3000.
-
Specialized Applications & Industrial Use
- New improved air knife – optics protection and air assist for models ROD 200, 300, 500, 1000, 2000, and 3000.
- Option for integration with a robotic arm or use of a special robotic head.
- Special tasks:
- Restoration
- Degreasing Gentle cleaning of sensitive surfaces
-
Customer Support & Services
24-hour online support
Individual testing in the showroom
Full technical documentation & training
