Mobile cleaning laser ROD 2000 Bright+
Suitable applications
Suitable materials
Why choose a solution from NARRAN
We can individualize our machines according to your needs
We will arrange the turnkey contract, including installation and training
We offer the possibility of testing samples at your place of operation
We will quickly supply spare parts and provide a complete service
Description
Technical Specifications:
The scanning head of the machine is suitable for manual and robotic applications, it can be mounted in industrial lines. The flexible optical fiber for guiding the laser beam enables truly mobile work and cleaning even in less accessible places. The laser requires a standard 380/400 V, 50/60 Hz power supply. The machine is basically just a trolley with storage space for the laser head, so you can easily transport it where you need it.
The power, shape and width of the beam can be changed, even while the laser is running.
The laser has integrated cooling, no additional cooling equipment is required.
Parameters
| Power supply | 3~PE+N 400 V / 230 V 50 Hz |
| Average output power | 2000 W |
| Power consumption | 8000 W |
| Lifetime of diodes | over 100,000 hours |
| Optical fiber length | 10 m (up to 100 m for special applications) |
| Dimensions | 140 × 64 × 112 cm |
| Weight | 250 kg |
| Process head weight | 2,5 kg |
| Peak power | 17 000kW (?) |
| Power cable connector | CEE 32 A 5P 400 V |
| Operating temperature of laser / head | 15–30 °C |
| Cooling | water |
| Laser safety class | 4 |
| Wavelength | 1064 nm |
| Emission mode | pulsed, ns |
| Nominal pulse duration | 20, 30, 50, 70, 100 ns |
| Nominal pulse energy | 33, 50, 71, 100 mJ |
| Beam scanning | 1D, 2D |
| Working distance range (focus) | 300–600 mm |
Structural and System Design
The entire system is integrated into a robust welded mobile frame, equipped with industrial wheels for easy handling and certified lifting points for use with a crane or forklift.
Standard equipment includes a flexible optical fiber (10 m as standard, up to 100 m on request), terminated with an actively cooled processing head weighing 2.5 kg, suitable for both manual operation and automated production lines.
The laser unit is powered from a standard single-phase supply (230 V, 50/60 Hz, 16 A), ensuring seamless use both in workshops and in the field.
Cooling of the entire system including the head is provided by an integrated closed water circuit with both heating and cooling functions, maintaining constant operating temperature and maximum component lifetime.
Narran ROD 500/1000/2000
Control System and Software Equipment
ROD 2000 is equipped with an industrial Siemens PLC and an intuitive touch HMI interface for setting power, frequency, scanning patterns, and focus. The software enables:
- saving work profiles and recalling recipes,
- user access security,
- full support for OPC UA, Profinet, remote access, and logging,
- automatic focusing and beam shaping during operation,
- communication with robot systems and production lines (KUKA, ABB, UR, Stäubli).
Filtration and Fume Extraction
To ensure safe and clean operation, every Narran system is equipped with a powerful filtration unit that effectively captures dust particles and microscopic fumes generated during the laser cleaning process.
The exhaust hose can be directly connected to the processing head, enabling fume extraction right at the source. This minimizes the spread of contaminants into the surroundings and improves workplace safety.
The filtration unit uses a multi-stage air cleaning system including pre-filters, HEPA filters, and activated carbon, ensuring maximum efficiency and compliance with industrial air quality standards.
The extraction power is adjustable, allowing easy adaptation to the specific cleaning process and the type of material being removed.

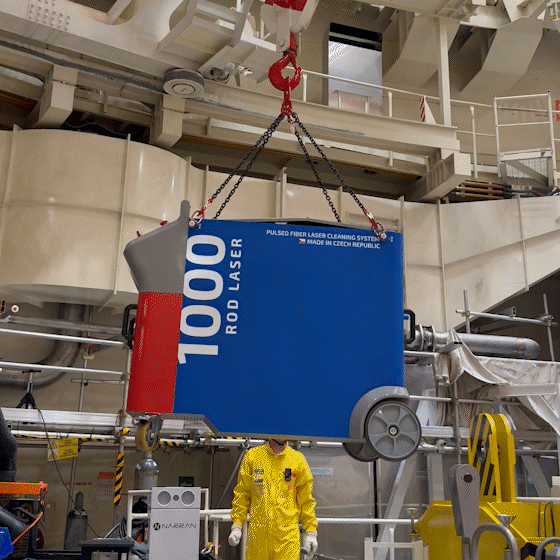

Crane lifting hooks
ROD fume extraction system
Mobility and Easy Handling
The ROD series systems are designed to be quickly and safely relocated between workplaces, even within complex operations.
- Integrated certified lifting hooks allow lifting and moving the unit with a crane or forklift – ideal for work at heights or in hard-to-reach areas.
- Compact design and a durable mobile frame with industrial wheels ensure easy handling both indoors and in the field.
- Easy transport – device dimensions are optimized for quick loading into a standard van without the need for special equipment.
- Stability and safety during handling are ensured by a robust construction and well-balanced weight distribution.
Thanks to these features, the system can be easily deployed in production halls, outdoor construction sites, or service applications.
