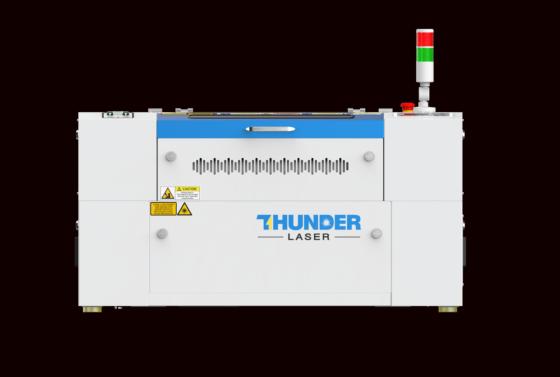

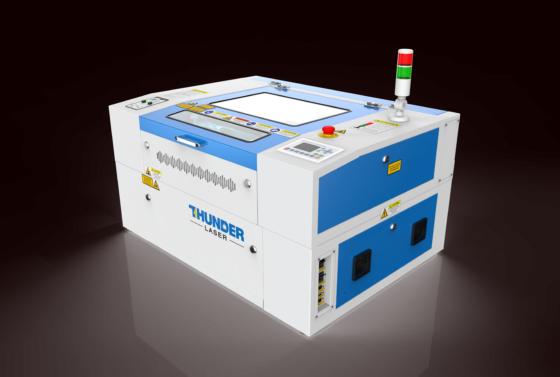

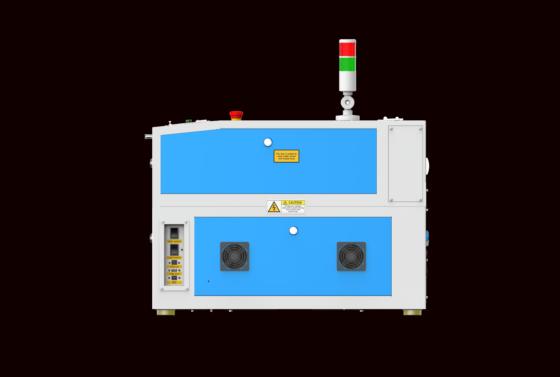

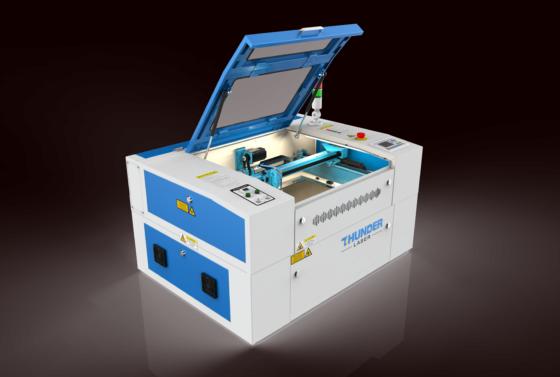

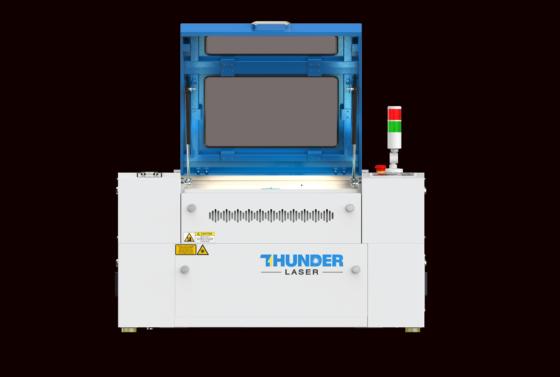

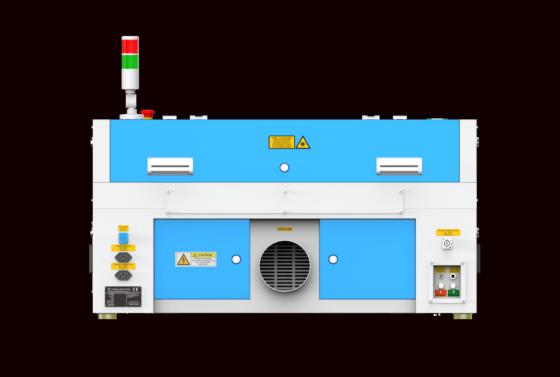

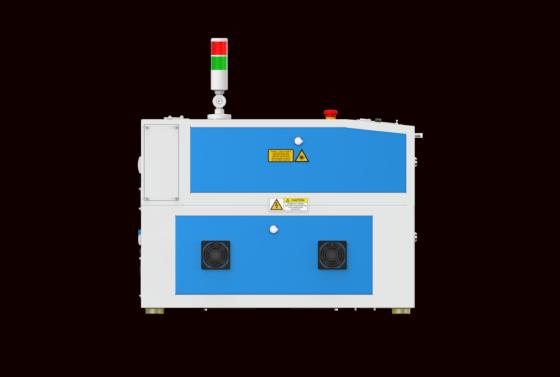

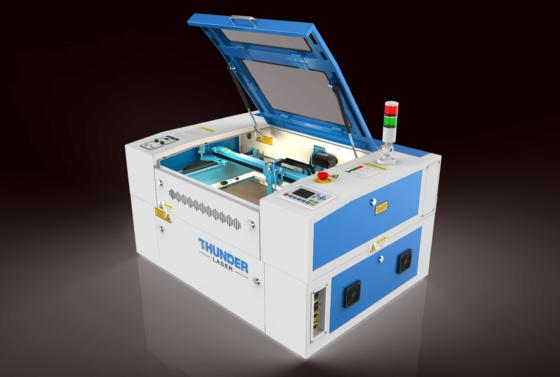

Nova 24
Nova 24 is a cutting and marking laser of very compact dimensions. Its width is 1070 mm, depth 790 mm and height 610 mm, so it is possible to call it a truly “table” model. Thanks to this, it can also fit into the space of a smaller workshop or graphic studio.
Suitable applications
Suitable materials
Why choose a solution from NARRAN
We can individualize our machines according to your needs
We will arrange the turnkey contract, including installation and training
We offer the possibility of testing samples at your place of operation
We will quickly supply spare parts and provide a complete service
Description
The Nova 24 laser plotter is equipped with a CO2 tube with a power of 40-60 W. It is possible to cut and mark a wide range of materials, such as paper, wood, plywood, textiles, leather, plexiglass and other plastics, cork. The laser can mark (engrave) even more demanding materials, such as some metals, glass, ceramics and marble, with the help of special chemicals and stainless steel, brass or titanium.
The work surface has dimensions of 600 × 400 mm, the height of the Z axis is up to 155 mm. The laser can work in raster, vector or combined mode. Control is facilitated by both the intuitive display panel and RDWorksV8 software, which can be run on a standard Windows PC. The machine can be connected via USB or Ethernet.
- high speed servomotors
- aiming red dot
- automatic focus
- protective cover safety, emergency stop button
Parameters
| Resolution | 100-500 DPI, rozšířitelné až na 1000 DPI |
| Work area | 600×400 mm |
| Z axis height | Up to 155 mm |
