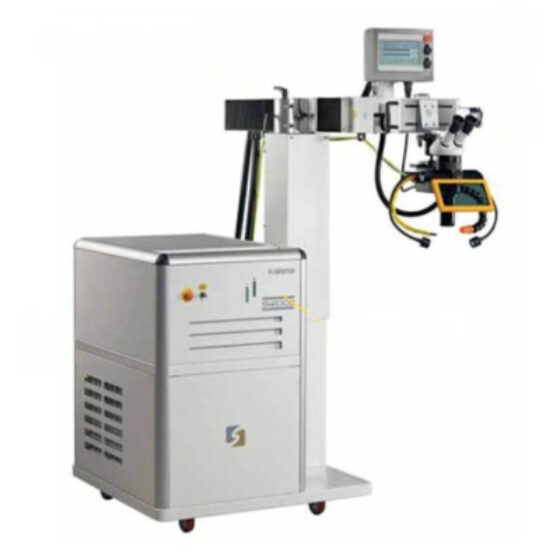

SWA 150
Suitable applications
Suitable materials
Why choose a solution from NARRAN
We can individualize our machines according to your needs
We will arrange the turnkey contract, including installation and training
We offer the possibility of testing samples at your place of operation
We will quickly supply spare parts and provide a complete service
Description
- Repeatability: SWA is designed to handle long work runs daily without losing accuracy and quality.
- Advanced software: Working parameters are controlled by advanced software, which allows easy and intuitive execution of complex operations: circumferential welding, work on inclined surfaces, filling and overlap functions for extremely regular welds.
- Flexibility: Flexible positioning and rotation of the welding head provides tremendous flexibility, making SWA adaptable to any need. This function also allows maintenance to be performed on irregular molds, even on internal parts.
- Control: Laser parameters are set via a simple and intuitive touch screen, the control menu is in the Czech language with the possibility of storing up to 250 programs. The setting of parameters enables detailed control of the curve, the welding diameter and possibly the automatic rotary spindle.
Parameters
| Power | 150W |
| Peak power | 10,5 kW |
| Maximum pulse energy | 75 Joule |
| Wavelength | 1064 nm |
| Welding point size (with 800 micron fiber) | 0.6 ÷ 2 mm (electronically adjustable) |
| Pulse length | 0.3 ms ÷ 25 ms |
| Machine dimensions | 1100×1950×1610 mm |
| Laser power supply | 400 V, 50 / 60Hz 3ph 3,3 Kw |
| Power supply of the control system | 230V 50 / 60Hz 1ph 1kW |
| Starting | pedal or joystick |
