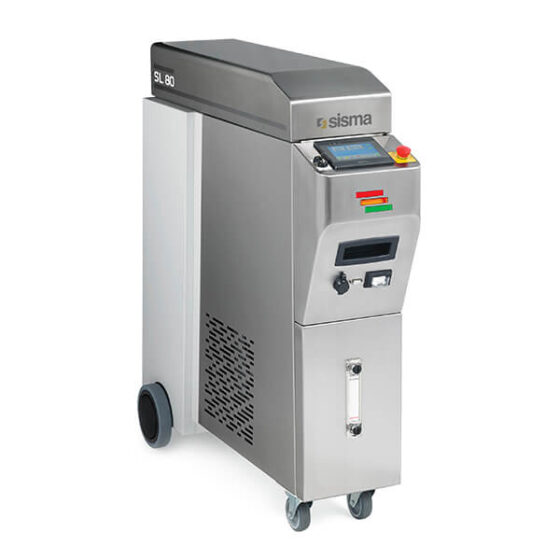

SISMA SL 35/50/80
The precise and fast SISMA SL 35/50/80 laser source is specially developed for laser welding in automatic production lines that require high precision and speed. It is equipped with an optical fiber and a focusing telescope, thanks to its versatile properties it can be easily connected and placed in production lines.
Why choose a solution from NARRAN
We can individualize our machines according to your needs
We will arrange the turnkey contract, including installation and training
We offer the possibility of testing samples at your place of operation
We will quickly supply spare parts and provide a complete service
Description
Universal
Sisma has a wide range of compact machines with an output from 25 to 300 W, with the possibility of splitting the welding beam to perform two welding processes simultaneously. It is possible to obtain welding sections with a size of 250 microns, so they can be used to work near heat-sensitive parts.
Digitally advanced
With the Sisma SL, you can change the pulse shape and program up to 3 different welds. This software is designed for easy welding of reflective materials and allows you to perform self-diagnostic and self-test functions.
Download SISMA SL brochureSisma SL 150 / 300 parameters
| Model | Nd: YAG |
| Laser | 35 / 50 / 80 |
| Average performance | 3,5 / 7,5 / 7,5 kW |
| Maximum pulse power | 25 / 30 / 70J |
| Maximum working temperature | 35°C |
| Cooling | Air |
| Dimensions | 345x950x900 |
| Weight | 97 / 100 kg |
