Leveling feet for 50 and 100 mm rails
It can be attached to large optical rails (OBA-L / LH) for height adjustment ± 8 mm.
OBL-LS is a rail with one leg and OBL-LW is a rail with two legs, it must be used as a set. The Rail Feet offers an easier plane adjustment.
We offer
- Simple leveling foot for large OptoSigma OBA-LS optical rails
- Double rail leveling foot OptoSigma OBA-LW
We offer a wide range of rails and carriers, for their complete list and detailed technical information see the manufacturer’s website – OptoSigma.
Compact 25 mm aluminum rails and carriers
![Small 25 mm rails and carriers]()
Allows the optical system to orient in any three-dimensional configuration by connecting the compact aluminum rail using threaded holes on the six sides of the adapter.
Medium 50 mm rails and carriers
![Medium 50 mm rails and carriers]()
The middle optical rails have an X-shaped cross section and the ribs extend radially in four directions.
Large 100 mm rails and carriers
![Optical rails]()
Large optical rails have a tubular cross-section and the ribs extend radially in four directions.

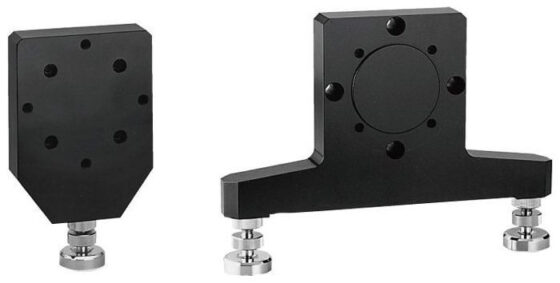

Leveling feet for 50 and 100 mm rails
![Levelling feet for 50 and 100 mm rails]()
It can be attached to large optical rails (OBA-L / LH) for height adjustment ± 8 mm.
