Compact 25 mm aluminum rails and carriers
We offer a wide range of rails and carriers, for their complete list and detailed technical information see the manufacturer’s page – OptoSigma.
It enables an optical system oriented in any three-dimensional configuration by connecting the compact aluminum rail using threaded holes on the six sides of the adapter.
Product codes 25 mm rails: OptoSigma OBS-25B, OBS-ADU, OBS-120G, MCAS-12, OBS-25BU, OBS-200G, MCAS-25, OBS-AD, OBS-50G, OBS-300G

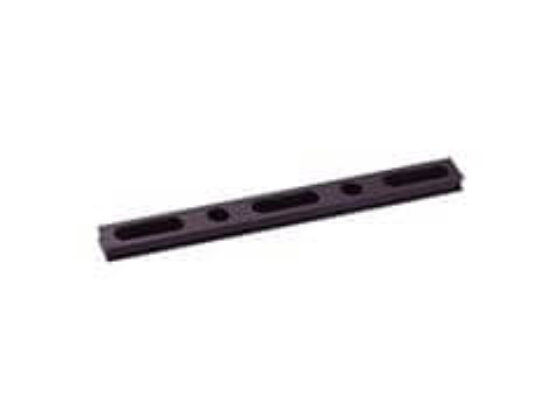

Compact 25 mm aluminum rails and carriers
![Small 25 mm rails and carriers]()
Allows the optical system to orient in any three-dimensional configuration by connecting the compact aluminum rail using threaded holes on the six sides of the adapter.
Medium 50 mm rails and carriers
![Medium 50 mm rails and carriers]()
The middle optical rails have an X-shaped cross section and the ribs extend radially in four directions.
Large 100 mm rails and carriers
![Optical rails]()
Large optical rails have a tubular cross-section and the ribs extend radially in four directions.
Leveling feet for 50 and 100 mm rails
![Levelling feet for 50 and 100 mm rails]()
It can be attached to large optical rails (OBA-L / LH) for height adjustment ± 8 mm.
