Synrad 48

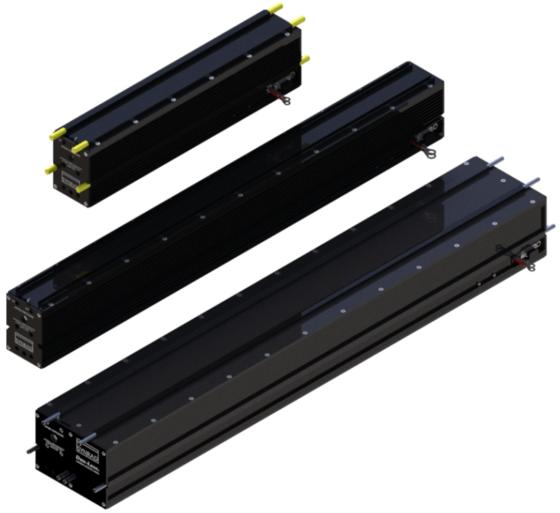

10-50 W CO2 laser sources Synrad Series 48 is a basic series of industrial CO2 lasers, which is characterized by good performance, reliability, long life and favorable price. It includes models with a power of 10, 25 and 50 W. Thanks to its compact dimensions, the 48 series is suitable for integration into marking, engraving and smaller cutting systems.
| Parameters | 48-1 | 48-1W | 48-2 | 48-2W | 48-5W |
| Power | 8W @ 9.3µm
10W @ 10.6µm |
8W @ 9.3 µm
10W @ 10.6µm |
18W @ 9.3µm
25W @ 10.6µm |
18W @ 9.3µm
25W @ 10.6µm |
50W |
| Rise time | < 150 µsec | < 150 µsec | < 150 µsec | < 150 µsec | < 150 µsec |
| Beam diameter | 3.5 mm | 3.5 mm | 3.5 mm | 3.5 mm | 3.5 mm |
| Wavelegth | 9.3 μm/10.6 μm | 9.3 μm/10.6 μm | 9.3 μm/10.6 μm | 9.3 μm/10.6 μm | 10.6 μm |
| Cooling | Air | Water | Air | Water | Water |
| Emmited light | 300W | 300W | 500W | 500W | 800W |
| Input power | 30 VDC/7A | 30 VDC/7A | 30VDC/14A | 30VDC/14A | 30VDC/28A |
Model 48-1 datasheet.
Model 48-1W datasheet.
Model 48-2 datasheet.
Model 48-2W datasheet.
Model 48-5W datasheet.
