SUPERSCAN IV

The SUPERSCAN IV digital control offers extremely dynamic responses and final speeds that are truly reflected when used in MOTF (marking and on-the-fly) applications. The robust, water-cooled design of the main block, combined with the optional air purge, allows applications with a laser power of up to 6 kW.

Nezávazná poptávka

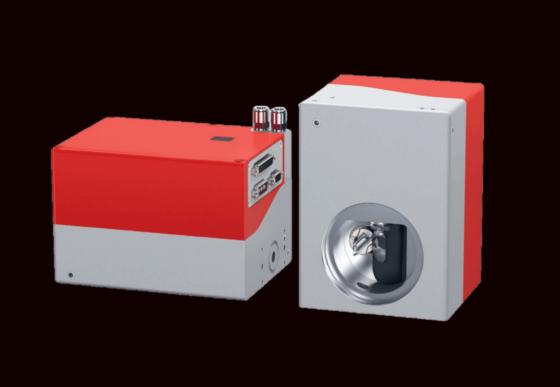

Laser scanning head superscan IV
Laser scanning head superscan IV

Description

  • Control using the 20-bit SL2-100 protocol or the 16-bit XY2-100 protocol
  • Thanks to the digital output phases, PWM significantly reduces energy losses and minimal heat development
  • Dynamic response and high speeds for maximum productivity, especially in MOTF applications
  • Wide range of mirror substrates and coatings for various applications
Downloadable datasheet

Parameters

Inlet openings available 10, 15, 20, 30mm
Voltage 30 – 48 V
Resolution 12 μrad
Repeatability (RMS) < 2 μrad

Why choose a solution from NARRAN

We can individualize our machines according to your needs

We will arrange the turnkey contract, including installation and training

We offer the possibility of testing samples at your place of operation

We will quickly supply spare parts and provide a complete service
