Fiber optics

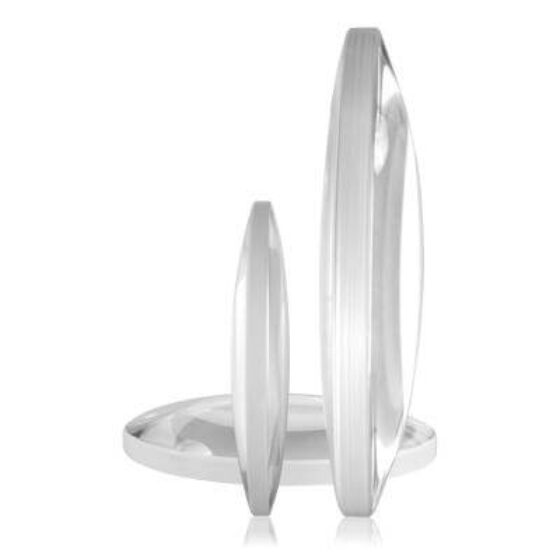

We supply laser lenses for cutting and welding Precitec laser heads and others, material is UV grade Fused Silica. The low absorption of the lens material ensures efficient use of the laser.

We have expanded our offer for you to focusing lenses for fiber and diode lasers from world-famous manufacturers (Trumpf, Precitec, Amada, Salvagnini, Mitsubishi and Hypertherm). Of course, we are able to service and overhaul your process head, or supply only a suitable focusing lens for welding and cutting process heads.



Optics for welding heads YW52 , YW30, YC30, YC52:


P3000–1048531

P0255–1067–00001 OL YW52 H25 FF 250 D 50 HQ

P0255–1001–00001 BM YW52 H25CL


Optics for cutting heads FineCutter, MiniCutter, LightCutter, ProCutter, FormCutter plus, Solidcutter,YK52:

P0591–1262–00001
PS0253–1 050709
P0591–1262–00001
P0591–1263–00001
P0591–1209–00001 OL HP SSL F200 m
P0591–1208–00001 OL HP SSL F125 m

Another fiber optics

Lens OEM Coating diameter mm F.L. mm E.T. mm Reference numbers
FiberLens Prima / Precitec AR/AR 38,1 190,5 7
FiberLens Prima / Precitec AR/AR 38,1 127 7
FiberLens Precitec AR/AR 30 –343 5,8 Precitec P0591–1262–00001
FiberLens Precitec AR/AR 30 90,5 3,1 Precitec P0591–1262–00001 OL HP SSL F125
FiberLens Precitec AR/AR 30 –679 5,5 Precitec P0591–1186–00001 ZO HP SSL COL F100 D 30 GB 14965
FiberLens Precitec AR/AR 30 85,7 2,9 Precitec P0591–1186–00001 ZO HP SSL COL F100 D 30 GB 14965
FiberLens Amada AR/AR 38,1 180 3 Amada 4KW
FiberLens Amada AR/AR 38,1 220 3,3 Amada 4KW
FiberLens Amada AR/AR 50,8 150 11,5
FiberLens Amada AR/AR 50,8 190 11,5
FiberLens Precitec AR/AR 30 200 3,7
FiberLens Salvagnini AR/AR 25,4 –203,2 6 Salvanini lens (Photop PN 1500.00970126)
FiberLens Mitsubishi AR/AR 25,4 112,5 2,4
FiberLens Au3Tec AR/AR 50,8 100 2
FiberLens Hypertherm AR/AR 35 150 9 021105 Hypertherm
FiberLens Mitsubishi AR/AR 25,4 225 3,3
FiberLens Salvagnini AR/AR 38,1 210 6,35
FiberLens Trumpf AR/AR 40 150 8  1603107 Trumpf
FiberLens Trumpf AR/AR 50 220 2,7
FiberLens Trumpf AR/AR 52 200 1206882 Trumpf D52
