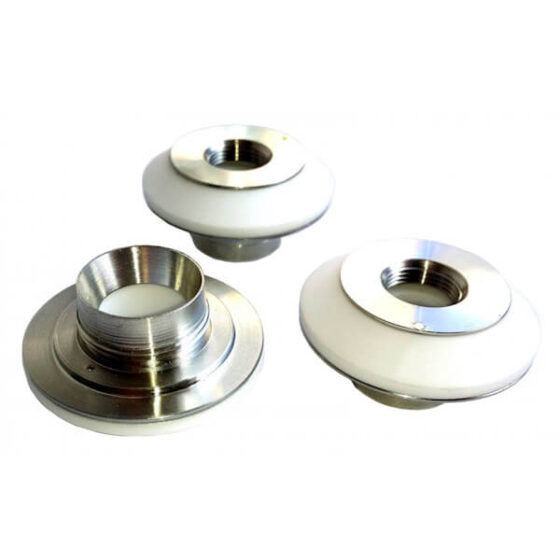

Ceramic insulating nozzle holders
Ceramic insulating rings (“ceramics”, ceramic nozzle holder, Teflon nozzle holder) are an important part of machines with CO2 laser heads. The ceramic material withstands high temperatures and sudden temperature changes and insulates the nozzle from the rest of the head.
Trumpf nozzle holders
OEM: 0258809, 0243839, 0247894
| Thread diameter | Order code |
| M6 | 0936678 |
| M8 | 0260432 |
| M12 | 1755673, 1349171, 1591594, 1755673 |
| M12 | 1906032 |
| M28 | 1707005 |
Precitec nozzle holders
P0571-1051-00001 Ceramic part KT B2” NOC
P0571-260-00001 Ceramic part KT B2”
P0362-150-00001 Ceramic part KT M1.5” C Z F2,5″
P0497-68871 Ceramic part KT M1.5” DXN II
P0494-752-00001 Ceramic part KT M1.5” KN
P0491-130-00001 Ceramic part KT M1.5” KS
P0492-430-00003 Ceramic part KT M1.5” S F2.5”
P0595-92036 Ceramic part KT X
P0595-94097 Ceramic part KT XB
P0571-1051-001 Nozzle Holder, Conical
P0494-752-00001, 092405 Nozzle Holder
P0380-211-00001 Insulation part IT M1.5″ D Z
P0593-895-00001 Insulation part IT HP2″ZP /MEL
P0571-265-00001 Insulation part IT B2″ Z
P0461-230-00001 Insulation part IT 461
